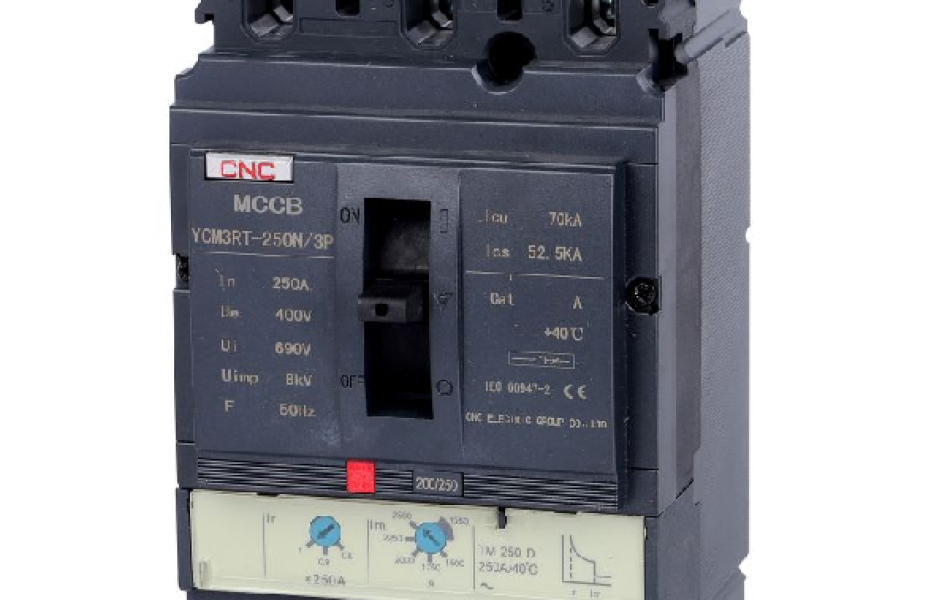

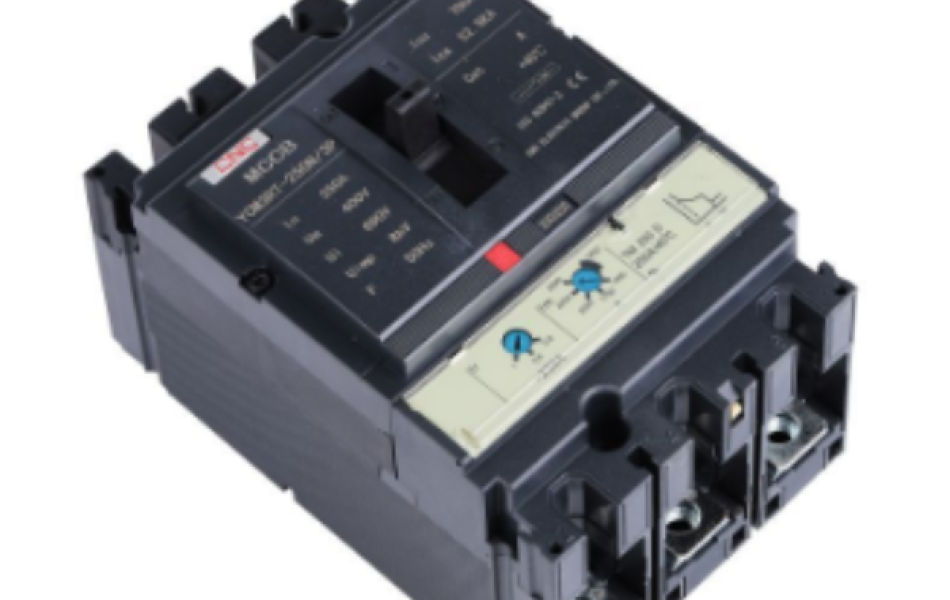

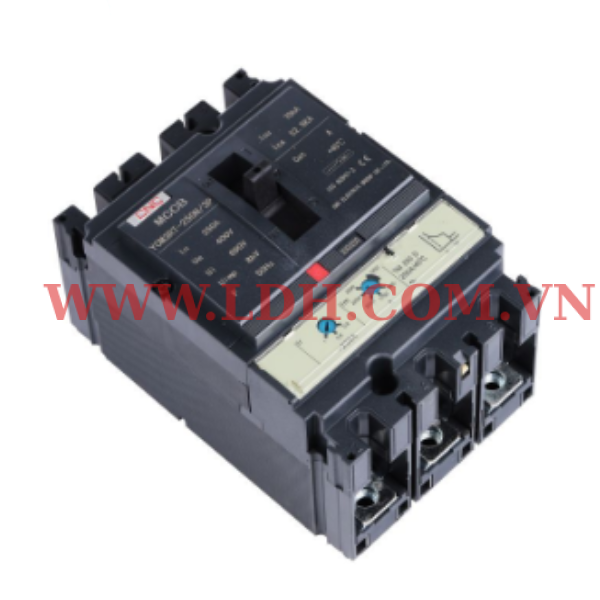

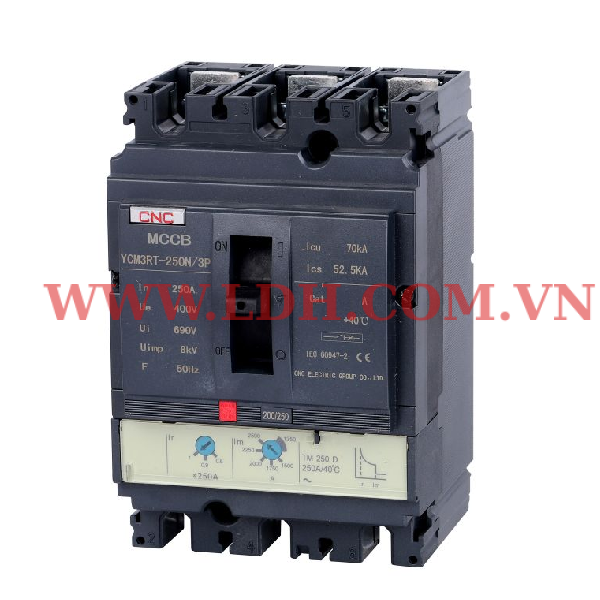

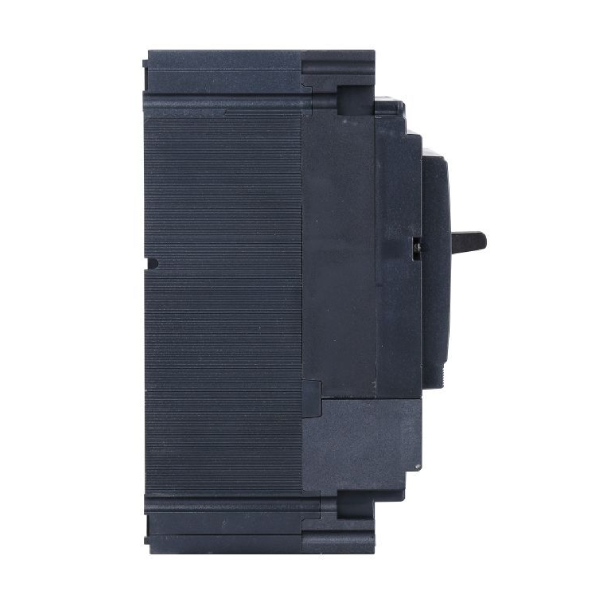

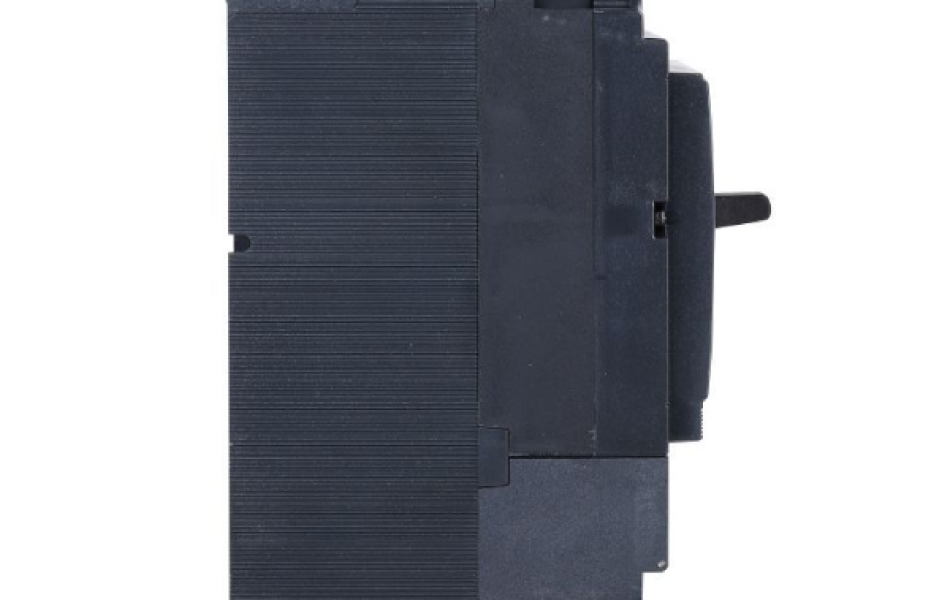

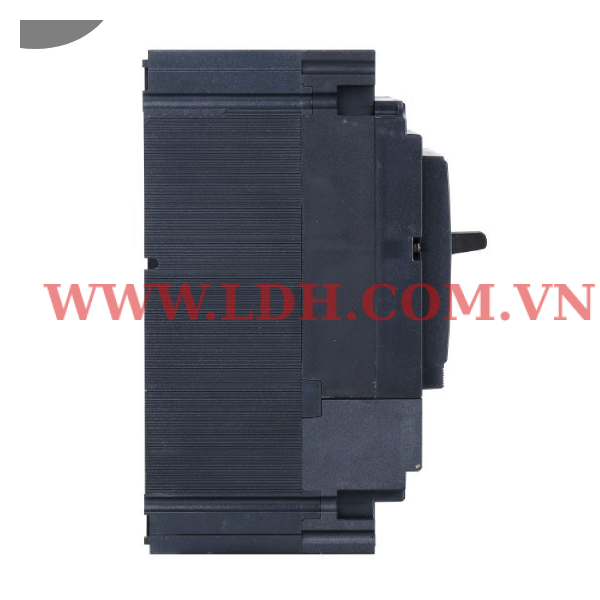

YCM3RT Thiết bị đóng cắt MCCB Cầu dao tự động

Mã sản phẩm:
YCM3RT
Lượt xem:
51
Giá:
Liên hệ

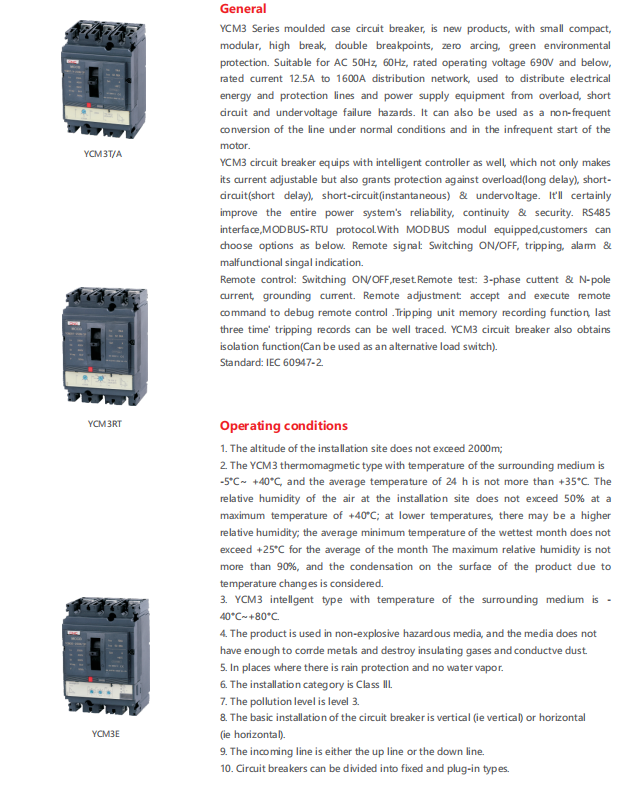

YCM3RT Thiết bị đóng cắt MCCB (Cầu dao tự động MCCB) là sản phẩm mới, nhỏ gọn, dạng mô-đun, ngắt cao, điểm ngắt kép, không hồ quang, bảo vệ môi trường xanh. Thích hợp cho mạng lưới phân phối AC 50Hz, 60Hz, điện áp hoạt động định mức 690V trở xuống, dòng điện định mức 12,5A đến 1600A, được sử dụng để phân phối năng lượng điện và các đường dây bảo vệ và thiết bị cung cấp điện khỏi nguy cơ quá tải, ngắn mạch và hỏng điện áp thấp. Nó cũng có thể được sử dụng như một chuyển đổi không thường xuyên của đường dây trong điều kiện bình thường và khi động cơ khởi động không thường xuyên

Thông tin sản phẩm
Bình luận
File

Circuit breaker protection settings are shown in table 1

Type of Stripper	Type	Overload longdelay settingcurrent(IR)	Overload longdelay (6·IN)Fix buckletime	Short-circuitshorter delaytuning current(ISD)	Short-circuitshorter delaysetting time(TSD)	Short-circuittransienttuning current(Ii)	GroundingProtectionsetting current(IG)	GroundingProtectionsetting time(TG)
MA:Single magnetic	YCM3MA-100 YCM3MA-160 YCM3MA-250 YCM3MA-400 YCM3MA-630	/	/	/	/	12In	/	/
T/A:Overload adjustable	YCM3T/A-100 YCM3T/A-160 YCM3T/A-250	(0.8~1)In	/	/	/	10In	/	/
RT:Overload+short circuit adjustable	YCM3RT-250 (200~250A)	(0.8~1)In	/	/	/	(5~10)In	/	/
RT:Overload+short circuit adjustable	YCM3RT-400 YCM3RT-630	(0.7~1)In	/	/	/	(5~10)In	/	/
E(2.0E):Electronic 2.0E	YCM3E-100 2.0E YCM3E-160 2.0E YCM3E-250 2.0E YCM3E-400 2.0E YCM3E-630 2.0E	(0.4~1)In	/	(1.5~10)Ir	/	12In	/	/
E(2.0E):Electronic 2.0E	YCM3E-1250 2.0E YCM3E-1600 2.0E	(0.4~1)In	0.5~24s	(1.5~10)Ir	/	12In	/	/
E(3.0E):Electronic 3.0E	YCM3E-100 3.0E YCM3E-160 3.0E YCM3E-250 3.0E YCM3E-400 3.0E YCM3E-630 3.0E	(0.4~1)In	0.5~12s	(1.5~12)Ir	0.1s~0.4s	(2~15)In	(20%~100%)In	/
E(3.0E):Electronic 3.0E	YCM3E-1250 3.0E YCM3E-1600 3.0E	(0.4~1)In	0.5~24s	(1.5~10)Ir	0.1s~0.4s	(2~15)In	Optional	/
Y:LCD display， Current typeYV:LCD display， Voltage typeYP:LCD display， Power type	YCM3Y(YV、YP)-100 YCM3Y(YV、YP)-160 YCM3Y(YV、YP)-250 YCM3Y(YV、YP)-400 YCM3Y(YV、YP)-630	(0.4~1)In	0.5~12s	(1.5~12)Ir	0s~0.4s	(2~15)In	(20%~100%)In	0s~0.4s
	YCM3Y(YV、YP)-1250 YCM3Y(YV、YP)-1600	(0.4~1)In	0.5~24s	(1.5~12)Ir	0s~0.4s	(2~15)In	(20%~100%)In	0s~0.4s

YCM3 parameter measurement function is shown in table 2

function type	functional category	Specific functions	Monomagnetic	Thermomagnetic		Electronic
function type	functional category	Specific functions	MA	T/A	RT	2.0E	3.0E	Y	YV	YP
Protection function	Current (A)	overload protection	/	■	■	■	■	■	■	■
		Short circuit short time delay protection	/	/	/	■	■	■	■	■
		Instantaneous protection	■	■	■	■	■	■	■	■
		Overload warning	/	/	/	■	■	■	■	■
		Neutral line protection
		Grounding protection	/	/	/	/	/	■	■	■
		Current imbalance protection	/	/	/	/	/	/	■	■
	Voltage(v)	Zero break protection	/	/	/	/	/	/	■	■
		Voltage imbalance protection	/	/	/	/	/	/	■	■
		Overfrequency and underfrequency protection	/	/	/	/	/	/	■	■
		Phase sequence protection	/	/	/	/	/	/	■	■
Measurement function	Current (A)	Phase current	/	/	/	/	/	■	■	■
		Neutral current	/	/	/	/	/
		Percentage of ground faults	/	/	/	/	/	/	■	■
		Current imbalance rate of each phase	/	/	/	/	/	/	■	■
	Voltage(V)	Line voltage	/	/	/	/	/	/	■	■
		Phase voltage	/	/	/	/	/	/	■	■
		Average line voltage	/	/	/	/	/	/	■	■
		Average phase voltage	/	/	/	/	/	/	■	■
		Voltage imbalance rate	/	/	/	/	/	/	■	■
		phase sequence	/	/	/	/	/	/	■	■
		frequency	/	/	/	/	/	/	■	■
	Power	Meritorious	/	/	/	/	/	/	/	■
		Reactive power	/	/	/	/	/	/	/	■
		Apparent	/	/	/	/	/	/	/	■
		Power factor and	/	/	/	/	/	/	/	■
	Quantity of electricity	Active, reactive, apparent	/	/	/	/	/	/	/	■
Maintenance function	Accumulated function	Various types of protection tripping times, displacement times, etc	/	/	/	/	/	/	■	■
	Event recording	Trip records, alarm records, displacement records, etc	/	/	/	/	/	/	■	■
	Contact wear	Contact wear record	/	/	/	/	/	/	■	■
	Number of operations	Record of operation times	/	/	/	/	/	/	■	■
	RTC function	Realtime clock	/	/	/	/	/	/	■	■
	Auxiliary/alarm detection function	Auxiliary, alarm detection, and display of circuit breaker status	/	/	/	/	/	/
	Electric operation control function	Remote electric operation control function	/	/	/	/	/	/	■	■
	human-computer interaction	LED indication	/	/	/	/	/	■	■	■
		LCD display	/	/	/	/	/	■	■	■
		Key settings	/	/	/	/	/	■	■	■
	communication function	Moedbus RTU DL/T645	/	/	/	/	/		■	■

Technical data

1.The basic parameters of the circuit breaker are shown in Table 2.

2.The overload delay and short-circuit transient protection action characteristics of the circuit breaker are shown in Table 4 and Table 3

Type			YCM3-100			YCM3-160			YCM3-250
Number of poles			3P, 4P			3P, 4P			3P, 4P
Shell frame maximum rated current Inm(A)			100			160			250
Rated current In(A)			12.5/16/2025/32/40 50/63/80/100	100		16/20/25/32 40/50/63/80 100/125/160	160		100/160/180 200/225/250	250
Type of Stripper			Thermal or single-magnetic	Intelligent type		Thermal or single-magnetic	Intelligent type		Thermal or single-magnetic	Intelligent type
Rated insulation voltage Ui(V)			800			800			800
Rated impulse withstand voltage Uimp(kV)			8			8			8
Rated voltage Ue(V)50-60Hz			AC415/500/690			AC415/500/690			AC415/500/690
Flying arc Distance(mm)			0			0			0
Short circuit breaking capability level			N		H	N		H	N	H
Rated limit Short		AC415V	50		85	50		85	50	85
circuit Breaking capacity Icu(kA)		AC500V	35		50	50		60	50	60
		AC690V	6		6	6		6	6	6
Rated running short circuit Breakingcapacity Ics(kA)		AC415V	75% Icu
		AC500V
		AC690V
Rated short time resistant current Icw(kA) (1s)			/	3 /			3 /			3
Working with categories			A			A			A
Remaining Current protection			Additional Residual current protection module(See P78-79 LE remaining current module for specific parameters)
Electrical Life Test	AC415V		10000	10000		8000	8000		8000	8000
	AC690V		1500	1500		1500	1500		1500	1500
Number of mechanical life			20000	20000		20000	20000		20000	20000
Dimensions	Wide(3P/4P)		105/140			105/140			105/140
	Long		161			161			161
	High		86			86			86
Mode of operation	Manual Direct operation、 Rotate handle operation、 Electric operating mechanism
Mounting method	Fixed type(front of plate)、 Fixed type(rear of plate)、 Plug-in(front of plate)、 Plug-in(rear of plate)

Type			YCM3-400		YCM3-630		YCM3-1600
Number of poles			3P, 4P		3P, 4P		3P, 4P
Shell frame maximum rated current Inm(A)			400		630		1600
Rated current In(A)			250/315/ 350/400	400	400/500/ 600/630	630	800/1000/1250/1600
Type of Stripper			Thermal or single-magnetic	Intelligent type	Thermal or single-magnetic	Intelligent type	Intelligent type
Rated insulation voltage Ui(V)			1000		1000		1000
Rated impulse withstand voltage Uimp(kV)			8		8		8
Rated voltage Ue(V)50-60Hz			AC415/500/690		AC415/500/690		AC415/500/690
Flying arc Distance(mm)			0		0		0
Short circuit breaking capability level			N	H	N	H	N
Rated limit Short circuitBreaking capacity Icu(kA)		AC415V	50	85	50	85	50
		AC500V	30	50	35	50	35
		AC690V	10	15	10	100	20
Rated running short circuit Breakingcapacity Ics(kA)		AC415V	75% Icu
		AC500V
		AC690V
Rated short time resistant current ICW (kA) (1s)			/	5	/	8	8
Working with categories			A	B	A	B	B
Remaining Current protection			Additional Residual current protection module(See P78-79 LE remaining current module for specific parameters)
Electrical Life Test		AC415V	6000	6000	5000	5000	1500
		AC690V	1000	1000	1000	1000	1000	1000
Number of mechanical life			10000	10000	10000	10000	10000	10000
Dimensions	Wide(3P/4P)		140/185		140/185		210/280
	Long		255		255		327
	High		110		110		147
Mode of operation	Manual Direct operation、Rotate handle operation、Electric operating mechanism
Mounting method	Fixed type(front of plate)、Fixed type(rear of plate)、Plug-in(front of plate)、Plug-in(rear of plate)

Serial number	Distribution breaker				Circumstance temperature
	Test current(times)		Tripping time	Status
1	1.05In		1h non-tripping ( In ≤63A ) 2h non-tripping ( In>63A )	Initial	-40℃±2℃
2	1.3In		1h tripping ( In ≤63A ) 2h tripping ( In>63A )	Following serial 1
3	10In±20%	8In	> 0.2s Tripping	Initial	Any suitable temperature
4		12In	≤ 0.2s Tripping

Technical data

Serial number	Motor protection breaker				Circumstance temperature
	Testing current(times)		Tripping time	State
1	1.05In		2h non-tripping	Initial	-40℃±2℃
2	1.2In		2h tripping	Following serial 1
3	1.5In		4min tripping	The order 1 current reaches the thermal equilibrium and begins
4	7.2In		2~10s Tripping	Initial
5	12In±20%	9.6In	> 0.2s Tripping	Initial	Any suitable temperature
6		14.4In	≤ 0.2s Tripping
