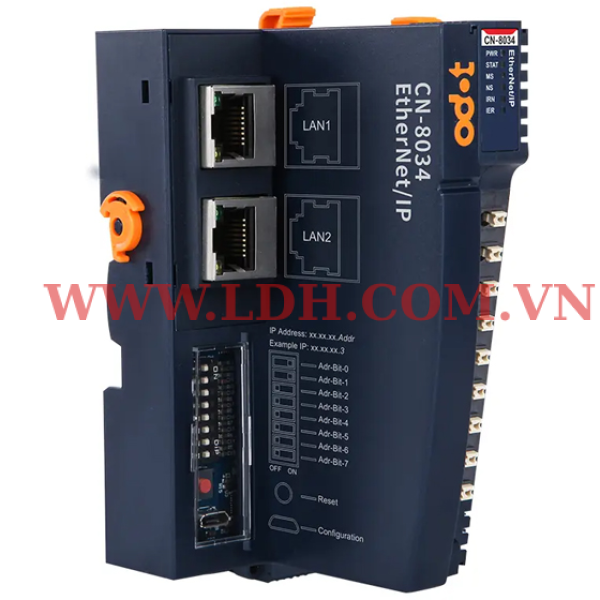

CN-8034 Bộ RTU chuẩn truyền thông EtherNET/IP của ODOT
The CN-8034 Ethernet/IP I/O module supports standard Ethernet/IP protocol access. The adapter supports a Max. input of 504 bytes and a Max. output of 504 bytes. It supports 32 pcs of extended IO modules.
CN-8034 Bộ RTU chuẩn truyền thông EtherNET/IP của ODOT
Product Details
ODOT Automation has officially launched CN-8034 EtherNET/IP network Adapter this month.
It has been tested successfully with PLC such as AB(1769-L16ER-BB1B), Delta (AS228T-A), Omron (NX1P2-9024DT) and other controllers.
Technical Parameters
The network adapter is also compatible with CODESYS V3.5.
Max. input is 504 byte
Max. output is 504 byte
Max. explicit message connection is 10
Max. implicit message connection is 5
Max. CIP connection is 10
Max. Bus length is 100m
2*RJ45, 10/100Mbps, self-adaption, full duplex
Technical Parameters
|
Hardware Specification |
|
|
System Power |
Nominal:24VDC, Range: 19.2～28.8VDC Current: Max.2A@24VDC Protection: Reverse Protection, Overcurrent Protection |
|
Power Consumption |
110mA@24VDC |
|
Internal BUS Supply Current |
Max.2A@5VDC |
|
Isolation |
System Power to Field Power Isolation |
|
Field Power Supply |
Power Supply：19.2～28.8V（Nominal 24VDC） |
|
Field Power Supply Current |
Max. DC 8A |
|
I/O Modules supported |
32 pcs |
|
Wiring |
Max.: AWG 18 Min.: AWG 24 |
|
Installation |
35mm DIN-Rail |
|
Size |
115*51.5*75mm |
|
Weight |
130g |
|
Environment Specification |
|
|
Operating Temperature of Vertical Installation |
-35℃~70℃ |
|
Operating Temperature of Horizontal Installation |
-35℃~60℃ |
|
Relative Humidity |
5~ 95%RH (No Condensation) |
|
Storage Temperature |
-40℃~85℃ |
|
Storage Humidity |
5~ 95%RH (No Condensation) |
|
Manufacturing Test Temperature |
-40℃~75℃ |
|
Ingress Protection Rating |
IP20 |
|
Ethernet/IP Parameter |
|
|
Protocol |
Ethernet/IP |
|
Max. input length |
504 Bytes per assembly instance |
|
Max. output length |
504 Bytes per assembly instance |
|
Max. no. of explicit message connections |
10 |
|
Max. no. of implicit message connections |
5 |
|
Max. no. of CIP connections |
10 |
|
Network Interface |
2*RJ45 |
|
Speed |
10/100Mbps, MDI/MIDX, Full-Duplex |
|
Max.Bus Legenth |
100m |
