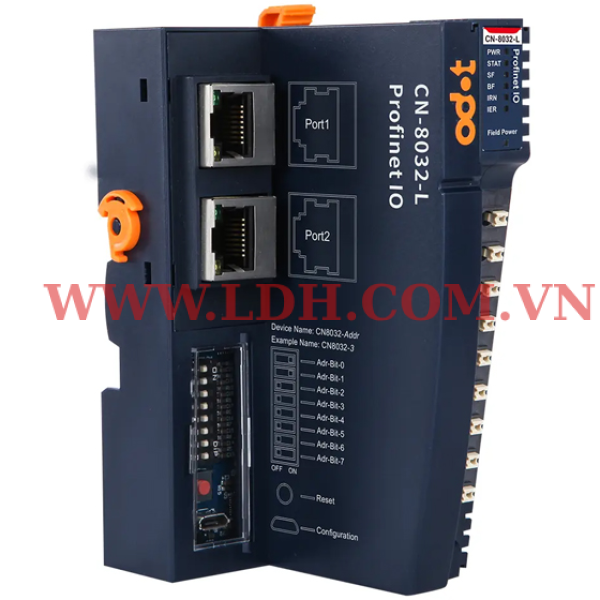

CN-8032-L Bộ RTU chuẩn truyền thông Profinet của ODOT
ODOT CN-8032-L Profinet Network Adapter The CN-8032-L Profinet network adapter supports standard Profinet IO Device Communication. The adapter supports no MRP redundancy, and no ring network redundancy. And it supports RT real-time communication mode, with its RT real-time communication minimum period of 1ms.The adapter supports a maximum input of 1440 bytes, a maximum output of 1440 bytes, and the number of the extended IO modules it supports is 32. support no MRP redudancy, no IRT funtion
CN-8032-L Bộ RTU chuẩn truyền thông Profinet của ODOT
Product Details
Technical Parameters
Hardware Specification
|
System Power |
Nominal: 24Vdc |
|
Range: 19.2-28.8Vdc |
|
|
Reverse Protection:YES |
|
|
Power Consumption |
110mA@24Vdc |
|
Current Output |
Max:2A@5Vdc |
|
Isolation |
System Power to Field Power Isolation |
|
Field Power |
Nominal-24Vdc Range-19.2-28.8Vdc |
|
Reverse Protection |
YES |
|
Field Power Contact |
Max:8A |
|
Expansion Module |
32 Slots |
|
Wiring |
Max.1.5mm² (AWG 16) |
|
Mounting Type |
35mm DIN-Rail |
|
Size |
115*51.5*75mm |
|
Weight |
130g |
Environment Specification
| Operational Temperature | -35~70℃ |
| Operational Humidity | 5%-95% (No Condensation) |
| Protection Class | IP20 |
Profinet Parameter
|
Protocol |
Profinet IO Device |
|
I/O Data Size |
Input Max.1440 Bytes, Output Max.1440 Bytes |
|
RT |
YES，Min.1ms |
|
IRT |
YES，Min.250us |
|
MRP |
YES |
|
MRPD |
NO |
|
Network Interface |
RJ45x2 |
|
Speed |
10/100Mbps, MDI/MIDX, Full-Duplex |
|
Distance |
100m |
|
Profinet Device Name |
DIP switch setting or Profinet monitor modifying |
