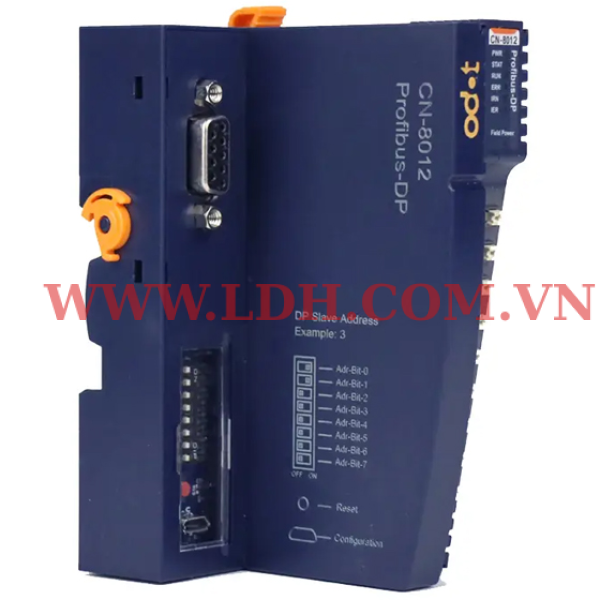

CN-8012 Bộ RTU chuẩn truyền thông Profibus-DP Bus của ODOT
Module Overview
CN-8012 PROFIBUS-DP network adapter supports access of standard PROFIBUS-DP, and the protocol version it supports is DPV0.
CN-8012 Bộ RTU chuẩn truyền thông Profibus-DP Bus của ODOT
Product Details
Technical Parameters
Adapter Hardware Parameter
|
Hardware Parameter |
|
|
System Power |
Nominal:24VDC, Range: 19.2～28.8VDC Current: Max.2A@24VDC Protection: Reverse Protection, Overcurrent Protection |
|
Power Consumption |
30mA@24VDC |
|
Internal Bus Supply Current |
Max.: 2.5A@5VDC |
|
Isolation |
System Power to Field Power Isolation |
|
Power Supply |
Nominal:24VDC, Range: 19.2～28.8VDC |
|
Field Power Current |
Max. DC 8A |
|
IO Modules Supported |
32 pcs |
|
Wiring |
Max.: AWG 18 Min.: AWG 24 |
|
Installation |
35mm DIN-Rail |
|
Size |
115*51.5*75mm |
|
Weight |
130g |
|
Environment Specification |
|
|
Operating Temperature of Vertical Installation |
-35℃~70℃ |
|
Operating Temperature of Horizontal Installation |
-35℃~60℃ |
|
Relative Humidity |
5~ 95%RH (No Condensation) |
|
Storage Temperature |
-40℃~85℃ |
|
Storage Humidity |
5~ 95%RH (No Condensation) |
|
Manufacturing Test Temperature |
-40℃~75℃ |
|
Ingress Protection Rating |
IP20 |
|
Profibus-DP Parameter |
|
|
Protocol |
PROFIBUS DPV0 |
|
Baud rate |
9.6k, 19.2k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 Mbps |
|
Interface Type |
DB9 female head |
|
Station Type |
PROFIBUS Slave |
|
Station Address |
Dial code switch configuration |
|
Topology |
Bus Topology |
|
Configuration Max. Length |
232 bytes |
|
IO Data Max. Length |
Input: Max. 244 bytes, Output: Max. 244 bytes, Sum of input and out put: Max. 288 bytes |
